Nova14 55

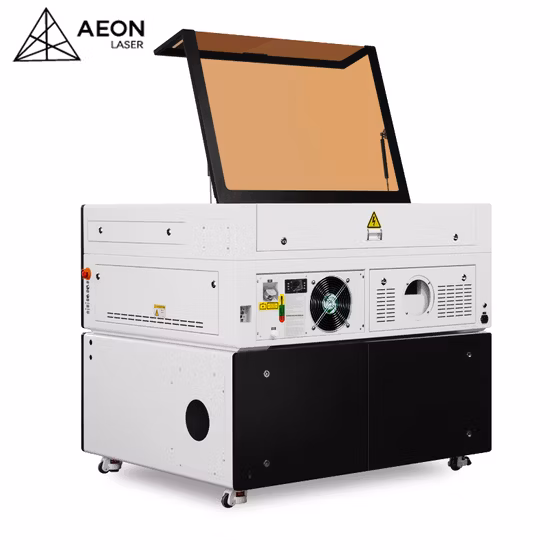

Nova14 55" X 35" Laser Etcher for Wood with Ruida Control System and Lightburn Software, Compatible with Windows, Mac Osx, Linux

Nova14 55" X 35" laser etcher for wood with Ruida Control System and Lightburn Software, Compatible with Windows, Mac Os

Send your inquiry

DESCRIPTION

Basic Info
Model NO. NOVA14
Structure Type Standing Type
Laser Classification Gaseous Laser
Safety Level Class 1
Laser Power 80W/100W/130W/150W Glass Tube
Built-in WiFi Included
Auto Focus Included
Max Acceleration Speed 5g
Work Table Honeycomb + Blade
Working Area 1400mm*900mm
Transport Package Wooden Box
Specification 1600*1000mm
Trademark Aeon Laser
Origin China
HS Code 8456110090
Production Capacity 4800set/Year
Product Description

Nova14 55" X 35" laser etcher for wood with Ruida Control System and Lightburn Software, Compatible with Windows, Mac Osx, Linux

The structure of the machine is very strong, which makes it more steady. The machine is equipped with a honeycomb and blade worktable and with model3000 or 5000 chillers, Max. engraving speed 1000mm/s; Max acceleration speed 1.8G.

Model : NOVA7 7050 (700*500mm) / NOVA10 1070 (1000*700mm) / NOVA14 1490 (1400*900mm) / NOVA16 1610 (1600*1000mm)
Power: 40w 60w 80W 100W 130W 150W

Nova14 55" X 35" laser etcher for wood with Ruida Control System and Lightburn Software, Compatible with Windows, Mac Osx, Linux Technical Specifications:
Working Area:1600*1000mm
Laser Tube:80W/100W/130W/150W
Laser Tube type:CO2 sealed glass tube
Z-Axis Height:200mm adjustable
Input Voltage:220V AC 50Hz/110V AC 60Hz
Rated Power:1200W-1300W
Operating Modes:Optimized raster, vector, and combined mode
Resolution:1000DPI
Max Engraving Speed:1000mm/sec
Max Cutting Speed:400mm/sec
Acceleration Speed:1.8G
Laser Optical Control:0-100% set by software
Minimum Engraving Size:Chinese Character 2.0mm*2.0mm, English Letter 1.0mm*1.0mm
Locating Precision:<=0.1
Cutting Thickness:0-20mm(depends on different materials )
Working Temperature:0-45°C
Environmental Humidity:5-95%
Buffer Memory:128Mb
Compatible Software:CorelDraw/Photoshop/AutoCAD/All kinds of Embroidery Software
Compatible Operation System: Windows XP/2000/Vista, Win7/8//10, Mac OS, Linux
Computer Interface:Ethernet/USB/WIFI
Worktable:Honeycomb + blade
Cooling system:water cooling
Air Pump:External 135W Air Pump
Exhaust Fan:External 750W blower
Machine Dimension:2100*1510*1025mm ( 82 43/64" x 59 29/64" x 40 23/64" )
Machine Net Weight:640Kg
Machine Packing Weight:660Kg
